ASTM A 565 GR 616
ASTM A 565 GR 616 material is ASTM A 565 GR 616 is available as Bar (Round, Shapes), Billet, Wire, Strip. .
Chemical composition of ASTM A 565 GR 616, ASTM A 565 GR 616 mechanical properties, ASTM A 565 GR 616 datasheet, ASTM A 565 GR 616 equivalent grade, Heat treatment and temperature process of ASTM A 565 GR 616.
ASTM A 565 GR 616 property sheet
Related Materials
Chemical Composition of ASTM A 565 GR 616
| C | 0.20-0.25 |
| Si | 0.20-0.60 |
| Mn | 1.0 |
| P | 0.040 |
| S | 0.030 |
| Cr | 11.0-13.5 |
| Ni | 0.50-1.0 |
| Mo | 0.75-1.25 |
| V | 0.17-0.30 |
| W | 0.75-1.25 |
| Cu | 0.50 |
| other | Fe:Balance; |
Mechanical Properties of ASTM A 565 GR 616
| Rp0.2 (MPa) | 262 (≥) |
| Rm (MPa) | 741 (≥) |
| AKV (J) | 12 |
| A (%) | 14 |
| Z (%) | 13 |
| Hardness | HBW 424 |
ASTM A 565 GR 616 shape and dimensions
| ASTM A 565 GR 616 Round bar: | 1mm-800mm |
| ASTM A 565 GR 616 Square bar: | 10mm * 10mm-600mm *600mm |
| ASTM A 565 GR 616 Flat bar: | Thickness:8mm-800mm Width:10mm to 1500mm |
| ASTM A 565 GR 616 Sheet or Plate: | Thickness:3mm-80mm Width:1.5mm to 1500mm |
| ASTM A 565 GR 616 Strip or Coil: | Thickness:0.1mm-3mm Width:1.5mm-1500mm |
| ASTM A 565 GR 616 Forgings: | Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes |
| 1.4882 strip/sheet/plate stock |
| A387 F5 & Grade 5 sheet Coil strip |
| A387 F5 & Grade 5 Hot Coil stock |
| 422 Stainless Steel|Alloy 422|UNS S42200|616|B4B Stock |
ASTM A 565 GR 616 Relevant products
A387 F5 / Grade 5 Coil / Sheet
A387 F5 Grade 5 Coil Sheet
D6AC Forging Hollow Bar
The United States began to be developed in the early ...
IncoloyA-286 / GH 2132
IncoloyA-286 GH 2132
S66286 round bar
S66286 round bar
waspaloy round bar
waspaloy round bar
HastelloyC-22 round bar
HastelloyC-22 round bar
HastelloyC-276 round bar
HastelloyC-276 round bar
K93600\1.3912\Invar36\4J36 rod coil strip wire
UNS K93600, W N r 1 3912, 36, 4 J36 Invar is a l...
1.4980/A286/660/1.2779
1 4980 coil,
TIAL5 TA6 Titanium alloy Round Bar
Titanium has many obvious superior features: low density...

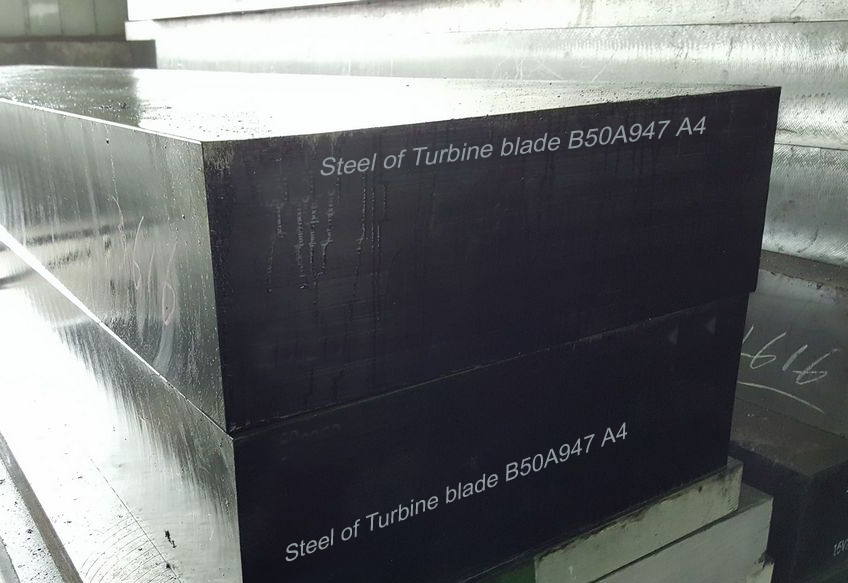

Steel of Turbine blade B50A947 A4
