422 Stainless Steel
422 Stainless Steel material is AMS AMS 5655 AMS ASTM A 176 AMS ASTM A 565 AMS AMSE SA 176 AMS B50A951 A1 AMS B50A951 A2 AMS SAE AMS 5655 Power Generation , Compressors, Steam turbines, Aircraft parts, High-temperature bolting.
Chemical composition of 422 Stainless Steel, 422 Stainless Steel mechanical properties, 422 Stainless Steel datasheet, 422 Stainless Steel equivalent grade, Heat treatment and temperature process of 422 Stainless Steel.
422 Stainless Steel property sheet
422 Stainless Steel Spec.
| AMS AMS 5655 |
| AMS ASTM A 176 |
| AMS ASTM A 565 |
| AMS AMSE SA 176 |
| AMS B50A951 A1 |
| AMS B50A951 A2 |
| AMS SAE AMS 5655 |
Related Materials
| GH4220 |
| A 176 S42200 |
| A 565 S42200 |
| S42200 |
| S42201 |
| A 176 S42200 |
| A 565 S42200 |
| S42200 |
| HNV8 |
| 422 |
| 422 |
| 422 |
| 422 |
| 422 |
| 422 |
| 422 SS |
| 422M |
| 422M (Cast) |
| 4422 |
| 4422 |
Chemical Composition of 422 Stainless Steel
| C: | 0.20 | 0.25 |
| Cr: | 11.50 | 13.50 |
| P: | Max | 0.040 |
| S: | Max | 0.030 |
| Mo: | 0.75 | 1.25 |
| W: | 0.75 | 1.25 |
| Si: | Max | 1.00 |
| V: | 0.20 | 0.50 |
| Mn: | Max | 1.00 |
| Fe: | Max | Balance |
Mechanical Properties of 422 Stainless Steel
| Rp0.2 (MPa) | 531 (≥) |
| Rm (MPa) | 681 (≥) |
| AKV (J) | 12 |
| A (%) | 24 |
| Z (%) | 23 |
| Hardness | HBW 334 |
422 Stainless Steel shape and dimensions

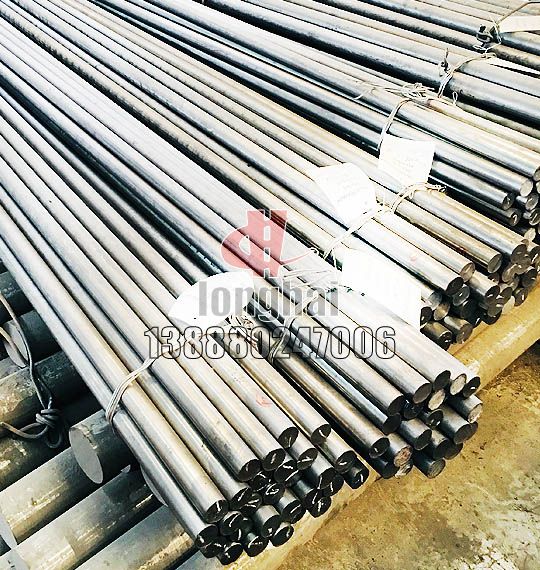

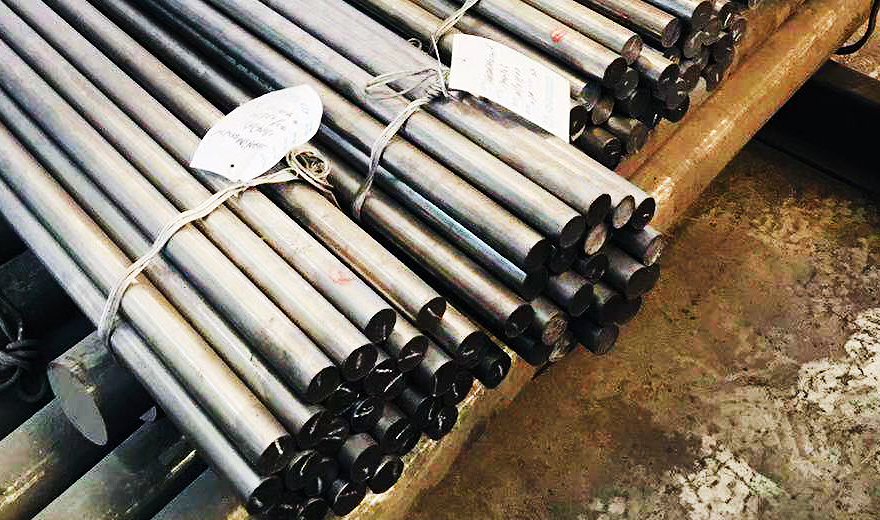

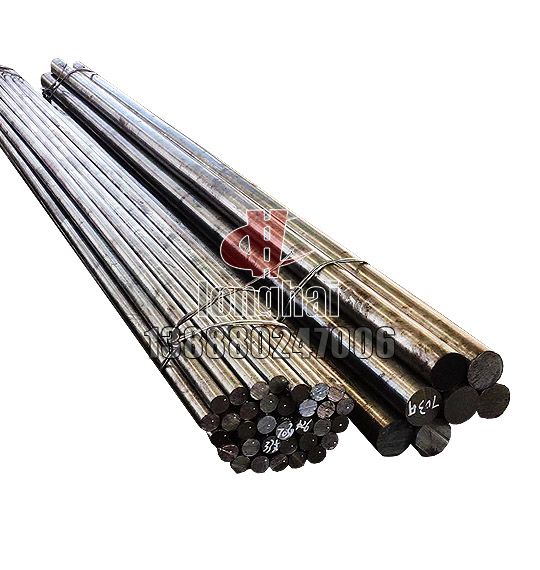

| 422 Stainless Steel Round bar: | 1mm-800mm |
| 422 Stainless Steel Square bar: | 10mm * 10mm-600mm *600mm |
| 422 Stainless Steel Flat bar: | Thickness:8mm-800mm Width:10mm to 1500mm |
| 422 Stainless Steel Sheet or Plate: | Thickness:3mm-80mm Width:1.5mm to 1500mm |
| 422 Stainless Steel Strip or Coil: | Thickness:0.1mm-3mm Width:1.5mm-1500mm |
| 422 Stainless Steel Forgings: | Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes |
| 422 Stainless Steel|Alloy 422|UNS S42200|616|B4B Stock |
