In ChinaSUH 660 material is CNS standard heat resistant steel plate of the steel grade and chemical composition.
Chemical composition of SUH 660, SUH 660 mechanical properties, SUH 660 datasheet, SUH 660 equivalent grade, Heat treatment and temperature process of SUH 660.
SUH 11M |
SUH 660 |
SUH 660 WSA |
SUH 660 WSB |
SUH 31 |
SUH 310 |
SUH 310 |
SUH 35 |
SUH 36 |
SUH 37 |
SUH 38 |
SUH 309 |
SUH 309 |
SUH310 |
SUH310 |
SUH 330 |
SUH 330 |
SUH 330 |
SUH660 |
SUH660 |
C: | Max | 0.08 |
Si: | Max | 1.00 |
Mn: | Max | 2.00 |
P: | Max | 0.040 |
S: | Max | 0.030 |
Cr: | 13.50 | 16.00 |
Ni: | 24.00 | 27.00 |
Mo: | 1.00 | 1.50 |
Al: | Max | 0.35 |
Ti: | 1.90 | 2.35 |
V: | 0.10 | 0.50 |
B: | 0.001 | 0.010 |
Rp0.2 (MPa) | 484 (≥) |
Rm (MPa) | 194 (≥) |
AKV (J) | 44 |
A (%) | 13 |
Z (%) | 13 |
Hardness | HBW 433 |
SUH 660 Round bar: | 1mm-800mm |

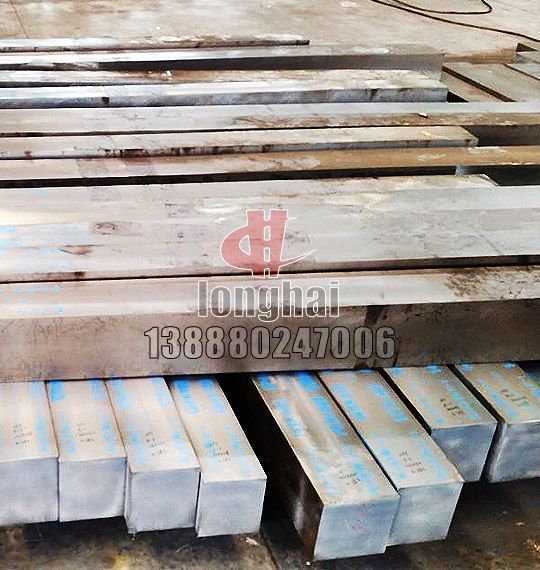

SUH 660 Square bar: | 10mm * 10mm-600mm *600mm |
SUH 660 Flat bar: | Thickness:8mm-800mm Width:10mm to 1500mm |
SUH 660 Sheet or Plate: | Thickness:3mm-80mm Width:1.5mm to 1500mm |
SUH 660 Strip or Coil: | Thickness:0.1mm-3mm Width:1.5mm-1500mm |
SUH 660 Forgings: | Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes |
