X5CrNiCuNb16-4
X5CrNiCuNb16-4 material is ISO ISO 15510 (2010) Stainless steels -- Chemical composition ISO ISO 16143-2 (2004) Stainless steels for general purposes -- Part 2: Semi-finished products, bars, rods and sections ISO ISO 16143-3 (2005) Stainless steels for general purposes -- Part 3: Wire ISO ISO/TS 15510 (2003) Stainless steels - Chemical composition Stainless steels - Chemical composition.
Chemical composition of X5CrNiCuNb16-4, X5CrNiCuNb16-4 mechanical properties, X5CrNiCuNb16-4 datasheet, X5CrNiCuNb16-4 equivalent grade, Heat treatment and temperature process of X5CrNiCuNb16-4.
X5CrNiCuNb16-4 property sheet
X5CrNiCuNb16-4 Spec.
| ISO ISO 15510 (2010) Stainless steels -- Chemical composition |
| ISO ISO 16143-2 (2004) Stainless steels for general purposes -- Part 2: Semi-finished products, bars, rods and sections |
| ISO ISO 16143-3 (2005) Stainless steels for general purposes -- Part 3: Wire |
| ISO ISO/TS 15510 (2003) Stainless steels - Chemical composition |
Related Materials
| X5CrNiCuNb16-4 |
| 1.4542 |
| X5CrNiCuNb16-4 |
| 1.4542 |
| X5CrNiCuNb16-4 |
| 17-4PH, 1.4542, X5CrNiCuNb16-4 |
Chemical Composition of X5CrNiCuNb16-4
| C: | Max | 0.07 |
| Si: | Max | 0.07 |
| Mn: | Max | 1.50 |
| P: | Max | 0.040 |
| S: | Max | 0.030 |
| Cr: | 15.00 | 17.00 |
| Ni: | 3.00 | 5.00 |
| Mo: | Max | 0.60 |
| N: | Max | Min |
| Cu: | 3.00 | 5.00 |
| Nb: | 5×C％ | 0.45 |
Mechanical Properties of X5CrNiCuNb16-4
| Rp0.2 (MPa) | 913 (≥) |
| Rm (MPa) | 731 (≥) |
| AKV (J) | 44 |
| A (%) | 11 |
| Z (%) | 41 |
| Hardness | HBW 323 |
X5CrNiCuNb16-4 shape and dimensions
| X5CrNiCuNb16-4 Round bar: | 1mm-800mm |
| X5CrNiCuNb16-4 Square bar: | 10mm * 10mm-600mm *600mm |
| X5CrNiCuNb16-4 Flat bar: | Thickness:8mm-800mm Width:10mm to 1500mm |
| X5CrNiCuNb16-4 Sheet or Plate: | Thickness:3mm-80mm Width:1.5mm to 1500mm |
| X5CrNiCuNb16-4 Strip or Coil: | Thickness:0.1mm-3mm Width:1.5mm-1500mm |
| X5CrNiCuNb16-4 Forgings: | Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes |
X5CrNiCuNb16-4 Relevant products

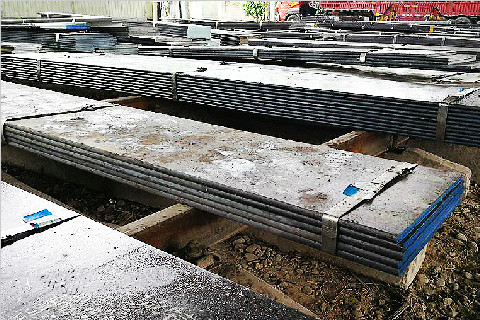

X5CrNiCuNb16-4 Plate
NF EN 4216 X5CrNiCuNb16-4 Plate
